Model: ZA-600BX
Size: 216(L)*50(W)*79(H)mm
Weight: 250g
Alarm mode: Red LED alarm light & long beep
Power on time: 1s
Temperature of container: 5-35℃
Storage temperature / humidity: -40℃ to 60℃ / 5% to 95% humidity
Working temperature / humidity: 15℃ to 35℃ / 5% to 95% humidity
Power Voltage/ frequency: AC180-240V(50/60Hz)
Power consumption: 10W

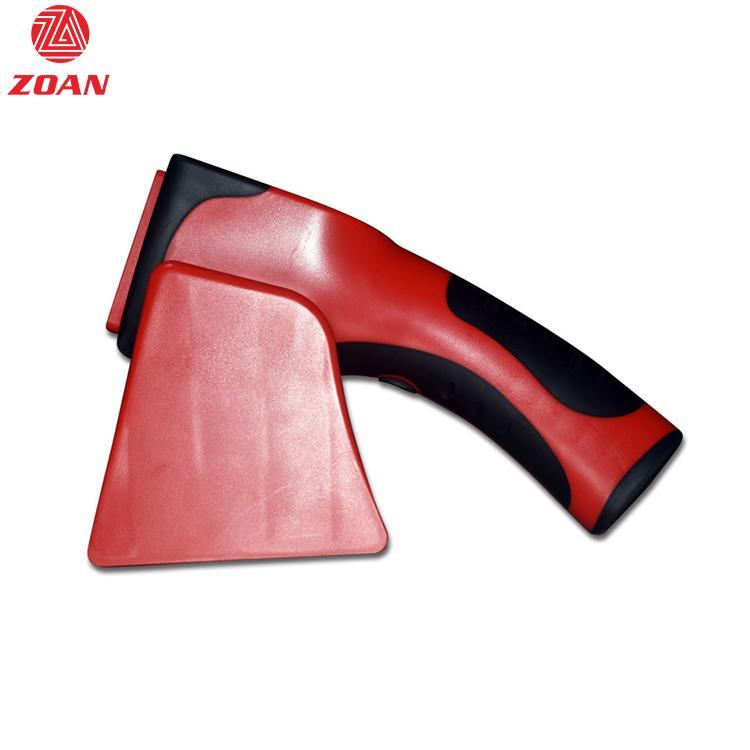

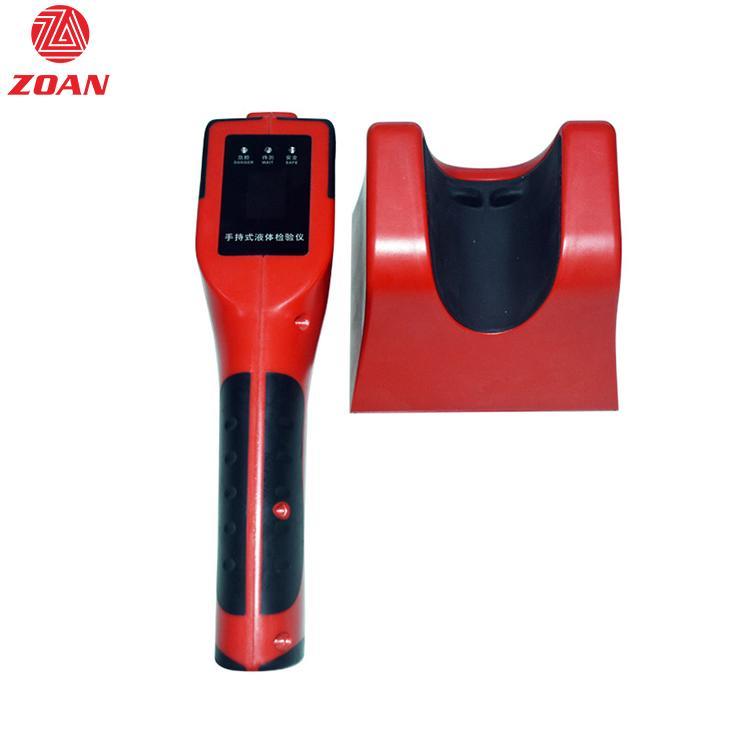

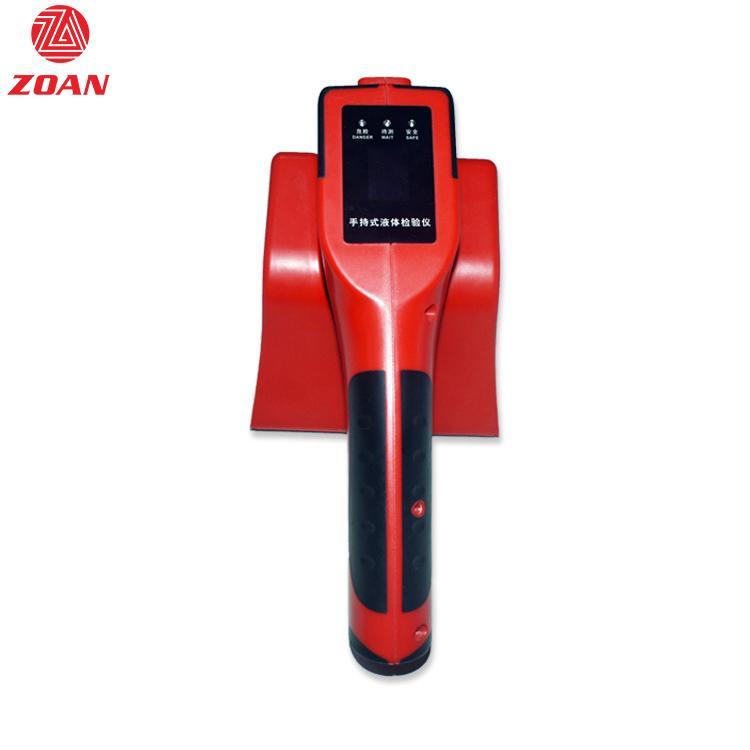

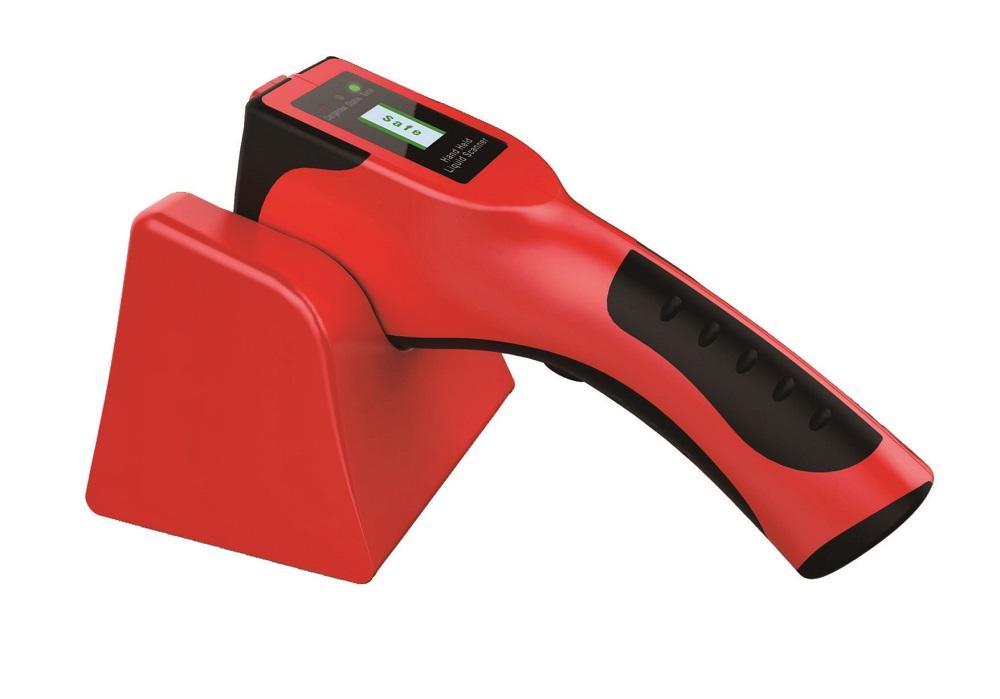

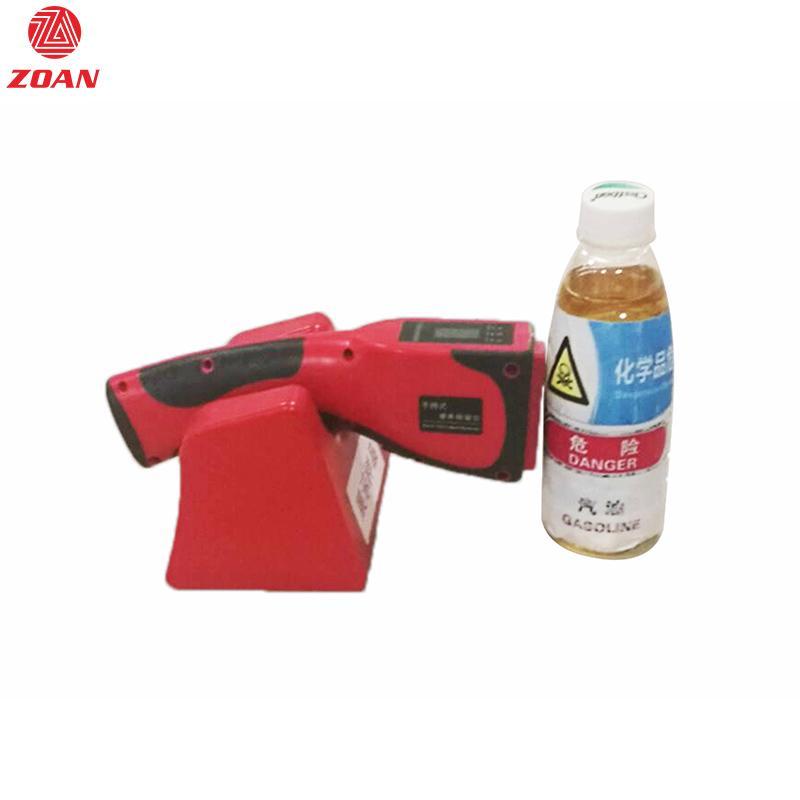

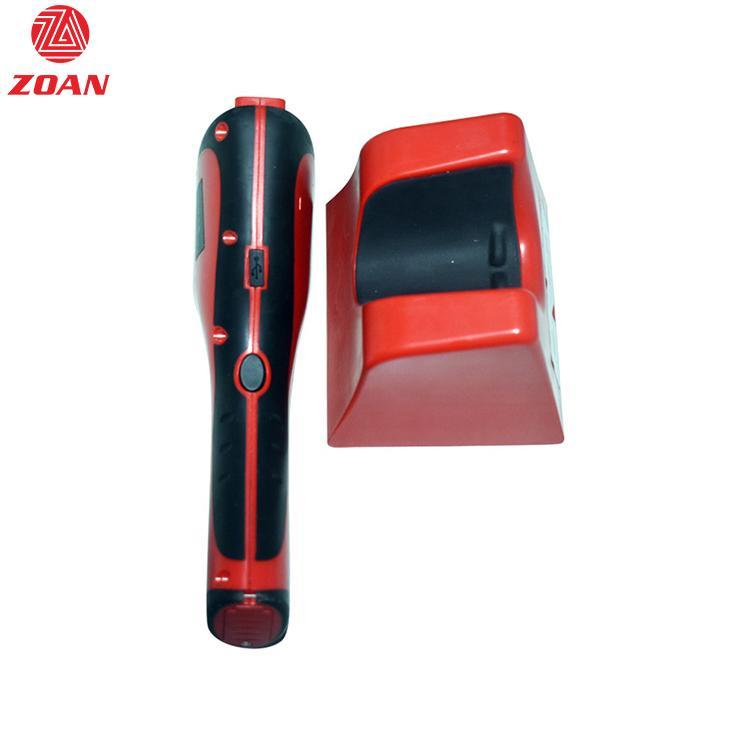

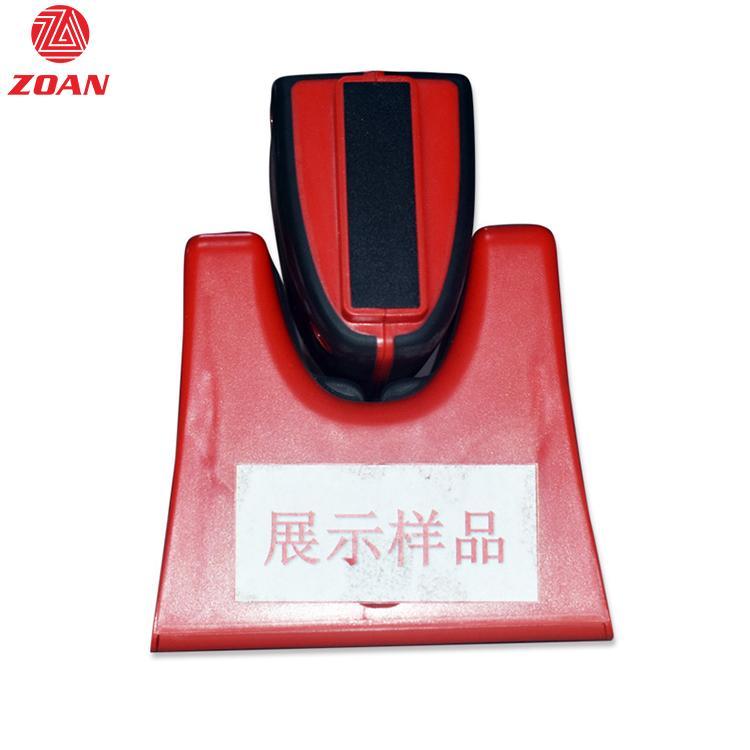

Portable Liquid Scanner for Dangerous Liquid Checking ZA-600BX
Description
With liquid explosives becoming significant hazard to aviation security, with such explosives disguised by terrorists as alcoholic beverages, perfumes or other seemingly innocent containers, aviation security authorities were driven to ban the transport hand luggage containing liquids, aerosols and gels,etc
Identify chemical composition of liquids, which is sealed in bottle.
Control access security of airport, train station, subway, gymnasium, important government office, boarder, and seaport and so on.
No radiation, harmless to people and test sample - Ultra-wideband pulse microwave reflection method & the thermal conductivity technology.
Detail
Features
1. Identify chemical composition of liquids, which is sealed in bottle or can.
2. Applications: Control access security of airport, train station, subway, gymnasium, important government office, boarder, and seaport and so on.
3. Small size, high speed analysis, easy to operate.
4. No radiation, harmless to people and test people
5. Advanced technology: Ultra-wideband pulse microwave reflection method and thermal conductivity technology.
6. Identify dangerous liquid: More than 30 sorts: Gasoline, kerosene, diesel oil, hydrochloric acid, sulfuric acid, nitric acid, sodium hydroxide, potassium hydroxide, isopropyl ether, petroleum ether, propionaldehyde, benzene, carbon disulfide, hexane, isopropanol, nitromethane, diethylamine, tris the trihalomethanes, ethylene glycol, xylene and other flammable, corrosive liquids
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
