High sensitive EAS AM antenna store security system

Introduction:

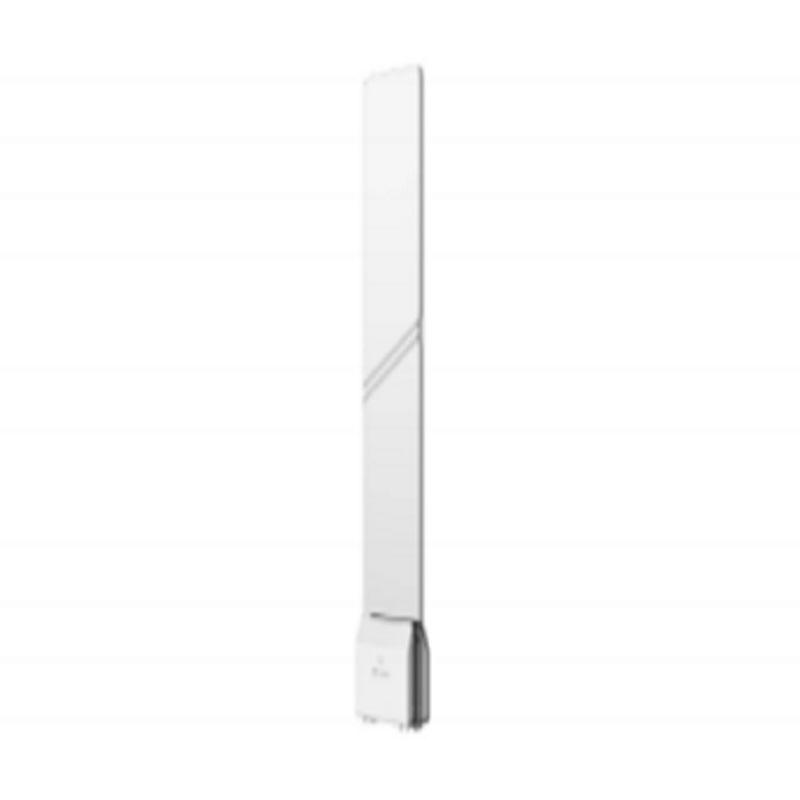

EAS AM Antenna is an acousto-magnetic label and tag detection  equipment with superior performance and unmatched features. It can detect and recognize AM labels and tags within its coverage. Then  not only does it alarm, but it also sends the signal to the monitoring camera through CCTV module simultaneously and saves the alarm videos automatically for reference. Its high performance contributes to reducing business loss and theft. The equipment has ultra-long detection distance and excellent anti-interference ability, which has proven its high cost performance in its multiple applications in different scenarios. The transparent acrylic appearance with backlight can also be used as an advertising panel.

Dimensions (mm[inch])

Features:

· Minimalist frameless design, high transparent acrylic shell, which is beautiful, stylish,durable, solid and easy to install.
· Superior detection distance, max detection distance can be 2.4 meters
· Excellent anti-interference, continuous working in complex
electromagnetic environment.
· Built-in 1.3 inch OLED display and WEB interface, convenient
configuration.
· Auto/manual adjust phase to effectively handle different kinds of interference.
· Alarm volume and alarm tone are both adjustable.
· Integrated 5 colors background LED light.
· Supports tag too close alert
· The primary and replica antenna are all integrated transceivers, three modes can be selected: RX, TX, TR mode.
· The primary antenna can connect up to 2 replica antennas as 1 set system. Multi-system can work together.
· Economic operating power consumption, energy-saving and
environment-friendly.
· CCTV monitoring linkage.
· Supports firmware upgrade.
· Supports network platforms connection, such as DSS Pro platforms. · Support cloud services, remote configuration.
· Supports multi-language (Optional).

Functions

EAS Label and Tag Detection

It can effectively detect AM labels and tags within the coverage range. Once the product with a label or tag passes through the antenna, a     sound and light alarm will be triggered, and the alarm volume can be  adjusted as needed.

Anti-inference Adjustment

Supports configurations such as multi-level alarm sensitivity and        threshold, antenna gain, multi-mode transmission, and real-time       interference indicator. It is beneficial for the equipment to effectively adapt to the vast majority of interference environments. And the       parameters and phase synchronization can be easily set through the buttons and screen.

Phase Adjustment Technology

Multi-phase scanning technology makes for the precise recognition of the labels or tags in all directions. Therefore, fewer antennas and smaller labels or tags can be used for a more affordable cost.

CCTV Linkage

Once the alarm is triggered, the antenna will send the signal to the CCTV system and save the alarm videos automatically for reference. Its high performance contributes to reducing business loss and theft.

Multiple Connection Methods

The system concludes one primary antenna with transceiver function (which supports individual use) and one replica antenna with transceiver function. The primary antenna can connect to 2 replica antennas simultaneously. Multiple connection methods can be used as needed.

Network Platform Connection

The antenna is equipped with the network communication function.  This function enables the device connect to the network platform and supports the remote configuration of the device at any time.

Applications

Suitable for supermarkets, shopping malls, clothing stores, pharmacies, luggage stores and more.
