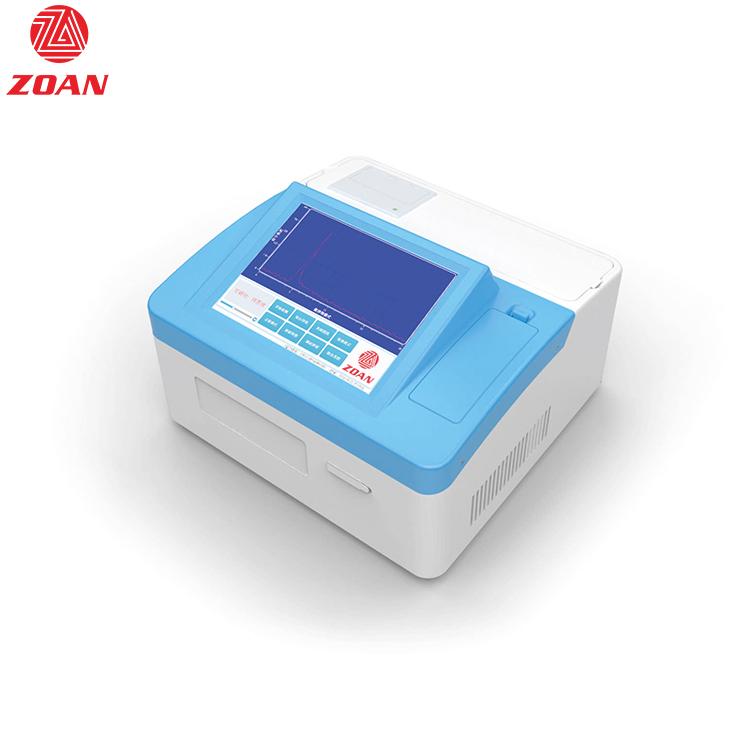

Touch screen desktop explosive trace detector ZA800

Model: ZA800

Size: 380 (W)×400 (L)×180(H) mm

Weight: 15kg

Display: 10 inch TFT color touch screen

Alarm: Sound / light

Identify speed:  < 8s

False alarm rate: ≤ 1%

Operating temperature: -10°C ~ 55°C

Power: AC220V  50Hz

Consumption: < 300W


  • Product Detail

Touch screen desktop explosive trace detector ZA800

Product introduction:

The ZA800 Explosion Proof Detector is a wide-range highly sensitive desktop system for the real-time detection to identify explosives and narcotics. And it is An easy-to-use non-radioactive-based explosive and narcotics/drugs substances scanner solution.Wide range less 8 seconds trace detection for security.  It can be widely used in subways, railways, public security judicial officers, border guards, and government agencies. , postal logistics and other key security zones, on the body of clothing, luggage, cargo surface residual drugs, explosives and other prohibited items, suspicious items can be quickly detected.


Product Features:

High sensitivity:Can detect at least 100 Nanogram black powder, including fireworks and civil homemade explosives

High speed Indentify

VUV lamp soft ionization technique , non-radioactive

Advanced migration tube design ensures high resolution;

Automatic cleaning system can prevent inject pollution.

Renewable gas purification system

Database open to user, can add new type explosive

10 inch TFT color touch screen

Built-in printer to print test result at any time.

Dipstick can be reused

Support network control and transfer

Unlimited Storage, USB port to output data


Products Image:

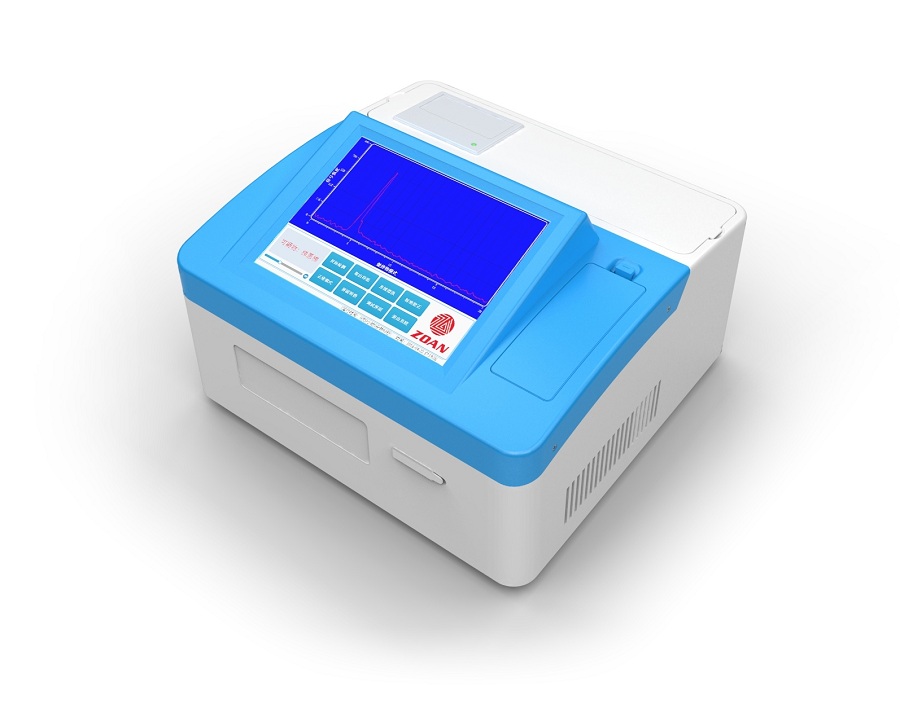

Explosion Proof Detector
