Model: ZA3000
Size: 2230 (H)×835 (H)×580(W) mm
Channel size: 1990 (H)×700 (L)×500(W) mm
Weight: 65kg
Power supply: AC85-264V/50Hz
Power consumption: <10W
Zones: 6/12/18 zones adjustable
Frequency: 100 frequency bands
Working environment: -20℃ ~ +45℃.
Sensitivity adjustment range: 0~999 level sensitivity adjustable

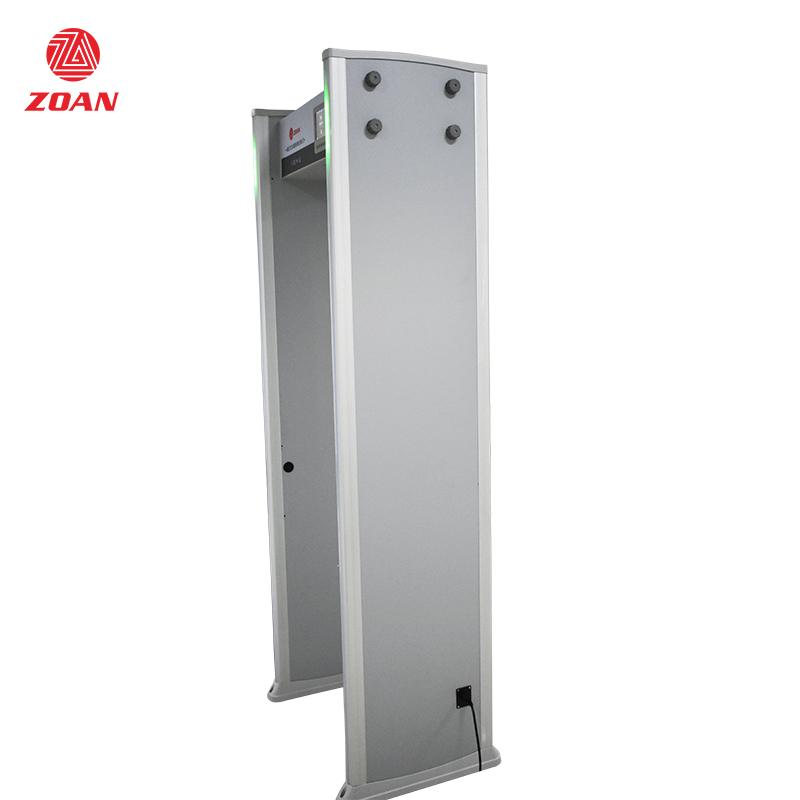

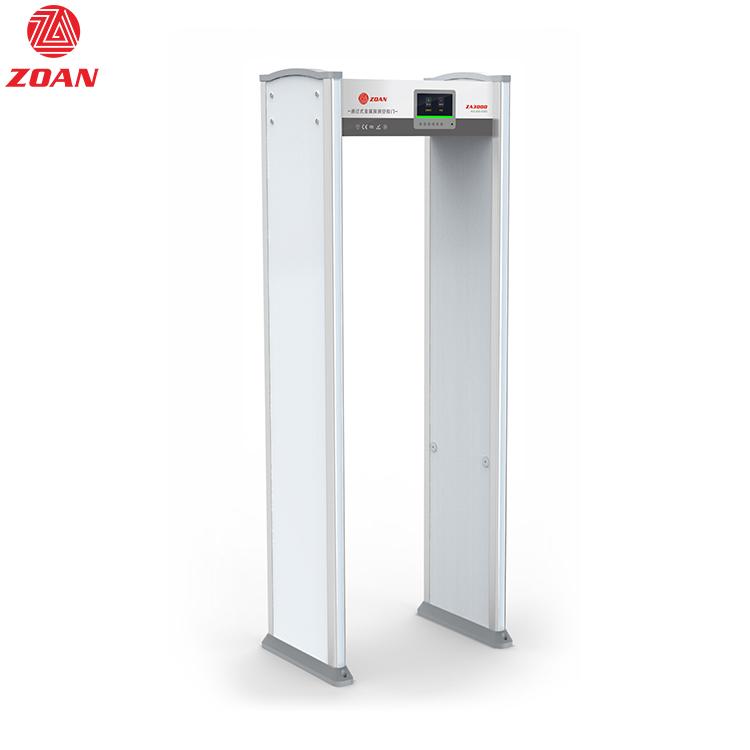

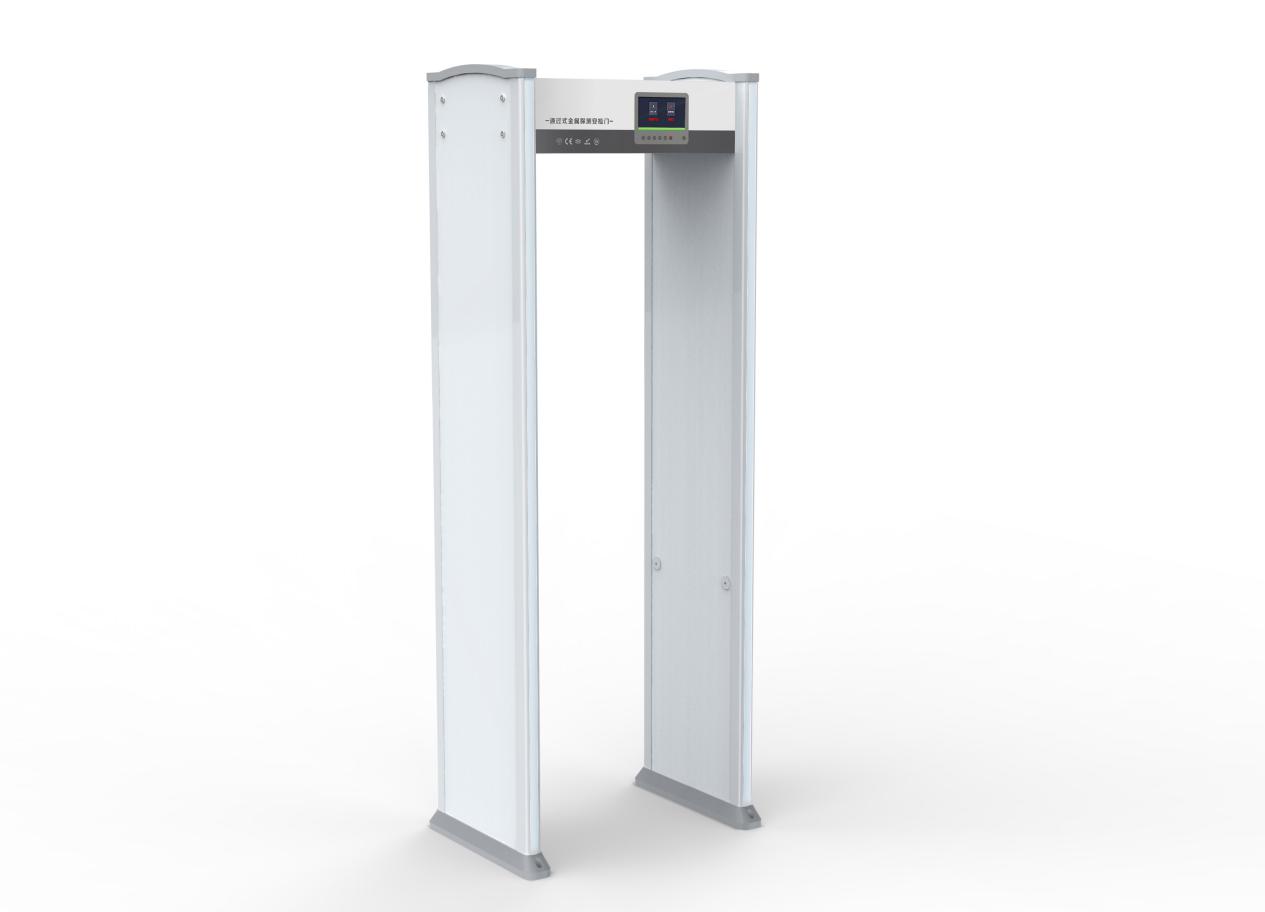

Walk through security metal detectors ZA3000
Product introduction

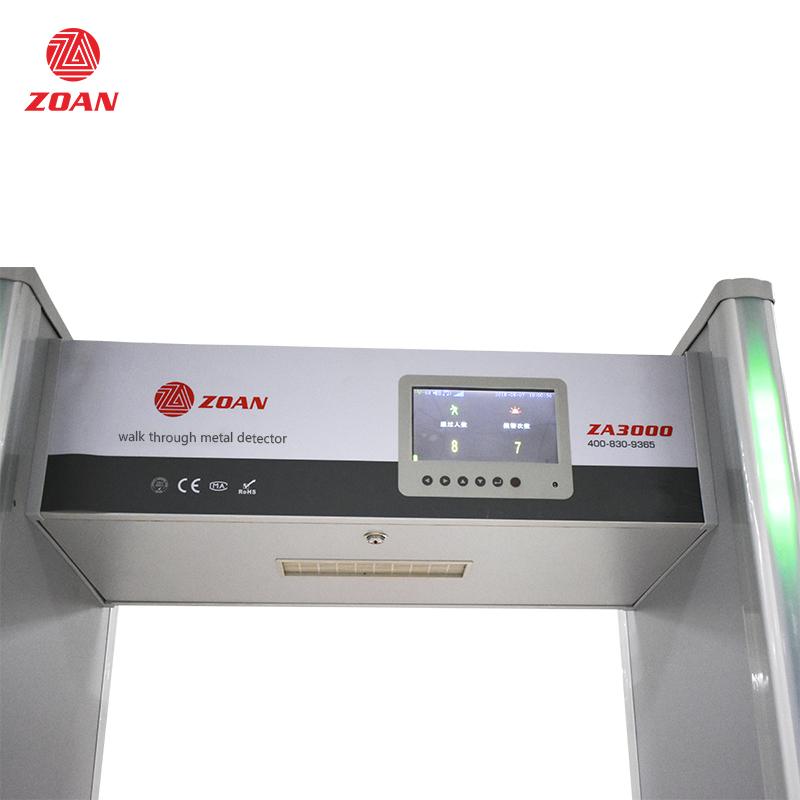

Zone ZA3000 Walk through security metal detector adopts Full Aluminum Frame and Highly Integrated LCD touch screen Host to check whether there is any metal items hidden in the body, such as metals, guns, controlled knives and so on. The max sensitivity reach up to 1000 levels, with simple software interface, much more easier for installation and maintenance.
Product Features:
Power Supply: AC85～264V/50Hz.
Power: ≦10W low power consumption, low radiation.
Standby: Only turn off the screen display, press the button or infrared in the standby mode to wake up.
Sleep: When the standby time is less than 10 minutes, sleep after 1 hour, the standby time is more than 10 minutes, and sleep after 6 times standby time. In the sleep state, the CPU works, other power is off, short press the switch button to wake up.
Frequency: 100 frequency bands, self-adaption when boot.
Working environment: -20℃ ~ +45℃.
System detection: detect whether there is a fault in the system.
Partition function: 6/12/18/zones, can be randomly divided to accurately determine the location of the location of metal objects.
Sensitivity adjustment range: 1000 levels sensitivity adjustable,0~999 level.
Alarm function: sound and light alarm simultaneously, support record max 99999 alarm times.
Alarm query: can check the alarm record according to the date time, and the indicator light shows each alarm location information.
Anti-interference force: digital circuit design, anti-omission of report, infrared anti-disturbance, and with strong anti-interference ability.
Application: high – middle and low sensitivity adapts to all security check site quick debugging.
Backup power(optional): battery power will not be less than 8 hours.
Fixed ID: each product has a fixed ID number.
Multilingual display: can choose the appropriate language as needed.
Calendar: can display Year, Month, Day, Hour and Minute.
Manage encryption: effectively prevent data from being illegally modified or mis-operated, which may result in abnormal work.
Application:
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
