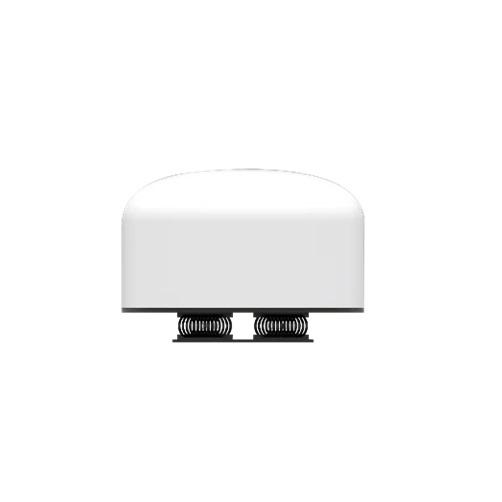

Vehicle-mounted UAV detection and control integrated equipment

Vehicle-mounted UAV detection and control integrated equipment

Product Introduction

The equipment is suitable for large-scale event security, security patrol, border defense, political leaders accompanying protection, military management areas, power and petrochemical parks and airports and other scenes of low-altitude security, can be single offline work, flexible and rapid deployment, mobile response, to meet the needs of various scenarios.

The product is mainly composed of five parts: equipment host, power box, bracket, heavy duty line and accessories, as shown in the following table:

Table 1 Details of product hardware components

2, Product function

1）Drone  detection：Can detect and identify the brand, model,frequency and other information of the invading UAV;

Uav positioning: Location information of DJI series drones can be located, real-time display of UAV position (latitude and longitude), azimuth information, distance information (distance of UAV relative to the location of equipment), speed, height, etc.

2）Flying hand positioning： Location information of DJI drone pilot, real-time display of pilot (remote control) position (latitude and longitude), azimuth information, distance information (distance between the pilot and the location of the device)；

3）Unique ID code identification：It can identify the unique serial number of DJI series drones and confirm the unique identity information of drones；

4）Observe and fight in one body：After detecting and identifying the UAV, the device can automatically carry out countermeasures against the UAV;

5）Multi-target trajectory tracking:It can realize multi-target UAV positioning and tracking, and display multiple UAV flight paths at the same time.

3. System function

1）Black and white list：The device can distinguish between cooperative and non-cooperative drones, does not alarm when detecting cooperative drones, and can mark the trust of cooperative drones;

2）Intrusion  alarm：When a drone intrusion is detected, sound or sound and light alarm will be performed;

3）Replaying of historical running data：3) Support UAV flight track playback, assist security personnel to analyze historical UAV flight data;

4）Probe record：The detection record list can retain the historical detection record, including the UAV serial number, model, frequency and other multidimensional information

5）Data visualization analysis：It supports UAV detection and statistical analysis of flight data, and can be presented in visual ways such as thermal map and line chart;

6）Electronic map：6) Support electronic map switching, including Autonavi, Bing and Baidu;

4. Product characteristics

1) Integrated design: All the working modules of the equipment are integrated in a protective cover, and the protective cover adopts a low wind resistance shape design, so that the vehicle maintains stability and safety under high-speed motion;

2) Mobile operations: the equipment has the ability to detect and counter drones at high speeds;

3) Full range of detection models: the system can identify and detect most common brands of UAVs such as DJI, Daotong, Dahua, Haoxiang, etc., as well as self-made traversal machines, WiFi machines, and most other models on the market;

4) Passive detection: the equipment does not emit any electromagnetic signals, no electromagnetic environmental pollution, and environmentally friendly;

5) Three-quantity waiting: the equipment is all-day (7*24h continuous work day and night), all-weather (suitable for complex electromagnetic environment, harsh climate environment), all-round (360° all-round detection of drone intrusion) guarding the security of the core area .

6) Multi-unit network: The equipment can be connected to the back-end management and control platform through networking, and the multi-unit network can meet large area coverage.

5.Product index parameters
6.1 Performance index

Table 2 Product performance specifications - Detection and positioning

Table 3 Product performance indicators - Countermeasures
6.2 Mechanical parameter

Table 4 Mechanical parameters of the product

6.3 Electrical characteristics
Table 5 Electrical characteristics of the product

6.4 Environmental adaptation
Table 6 Environmental adaptability

7.Safety standards
7.1 Electro Magnetic Compatibility
The equipment meets the following electromagnetic compatibility standards:
GB/T 17626.2-2018《Electromagnetic Compatibility Test and measurement technology Electrostatic discharge immunity Test》
GB/T 17626.3-2006《Electromagnetic compatibility testing and measurement techniques Radio frequency electromagnetic field radiation immunity testing》
GB/T 17626.4-2018《Electromagnetic compatibility testing and measurement techniques Electrical fast transient pulse group immunity test》
GB/T 17626.5-2019《Electromagnetic compatibility test and measurement technology Surge immunity test》
GB/T 17626.6-2017《Electromagnetic compatibility testing and measurement techniques Conducted disturbance immunity testing for RF field induction》
GB/T 17626.11-2008《Emc testing and measurement techniques Immunity tests for voltage dips, short interruptions and voltage changes》
All the above tests are carried out in accordance with the severity level 3

7.2 Electrical safety
The equipment meets the following electrical safety standards:
GB 16796-2009《Safety precautions alarm equipment - Safety requirements and test methods》

7.3 Environmental safety
The electric field strength of the electromagnetic environment meets the requirements of the public exposure control limit in the GB 8702-2014 standard.
