Model: ZA-918

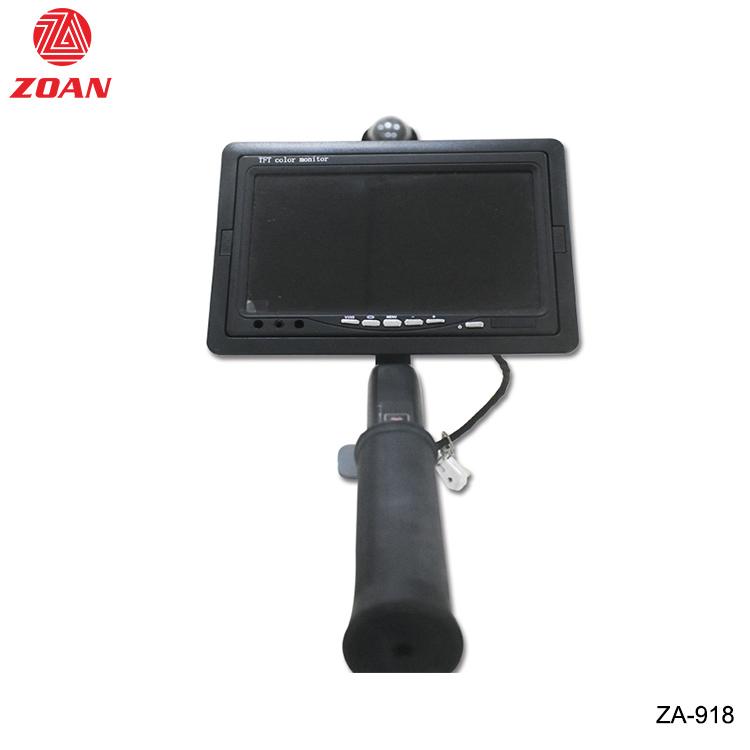

Monitor: 7 inch Color
Display pixels: 2 million pixels
Display resolution: 1080*720(RGB)
Start-up time: ≤1.0s
Total Weight: 3.4Kg
Spreading length: 1780mm
Folding length: 1020mm
Battery capacity: 5200Ah
Continuous working time: 12 hours

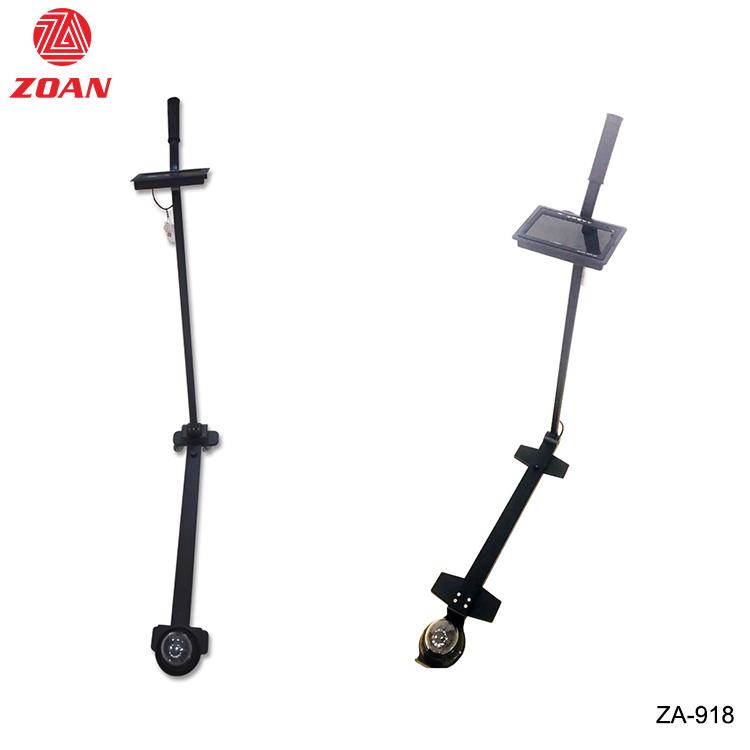

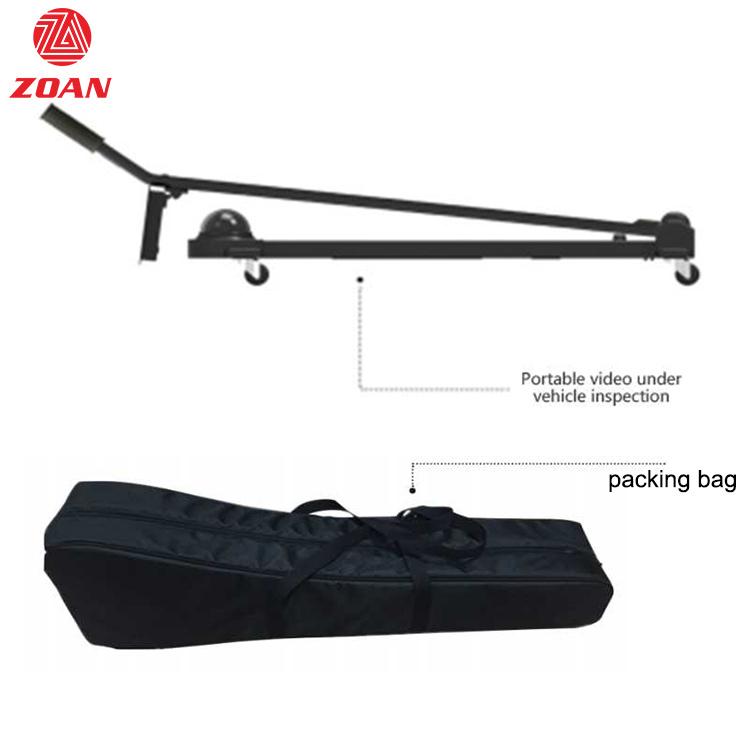

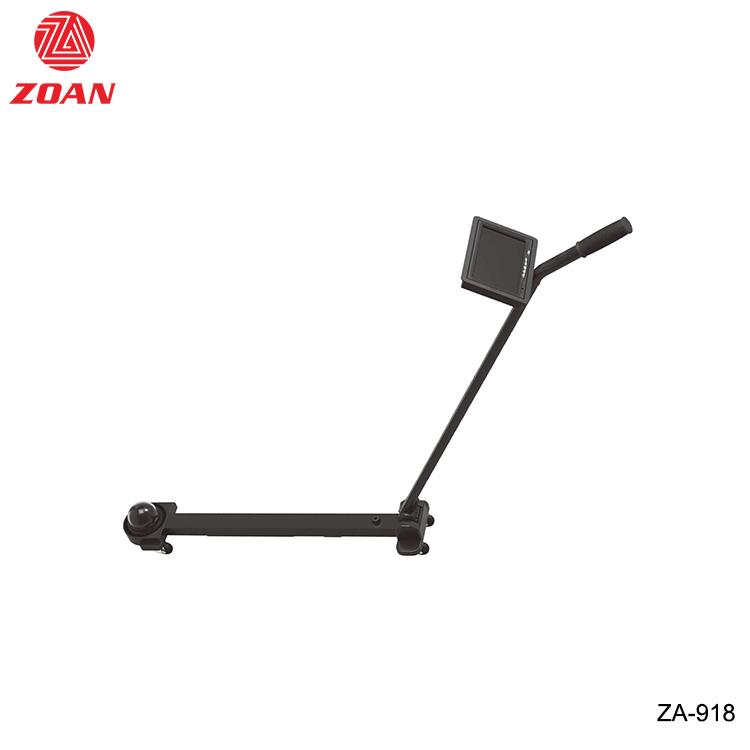

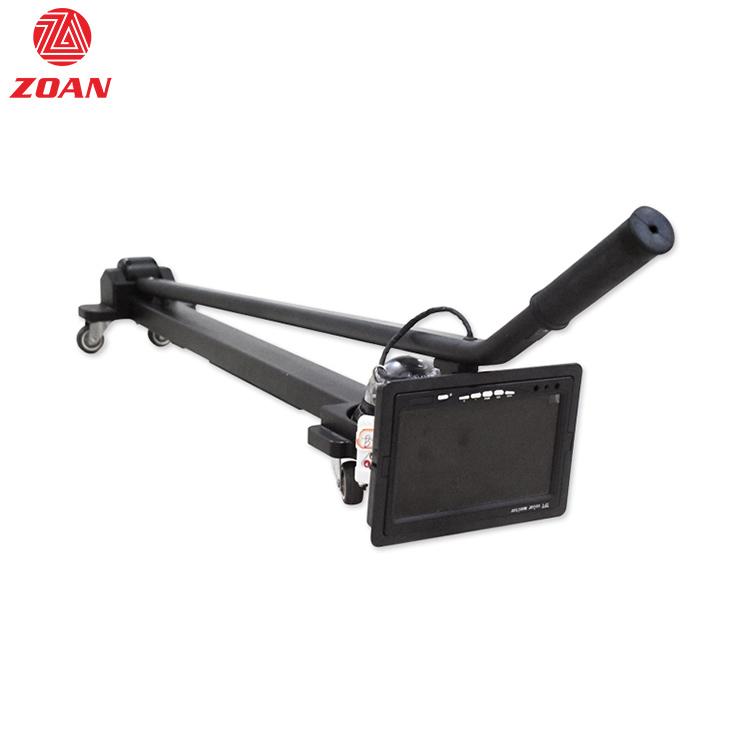

Under Vehicle DVR HD Video Inspection Camera System ZA-918
Description
ZA-918 Under Vehicle Search Camera is mainly used to check the bottom of the vehicle, to find whether it hide suspicious explosives or dangerous, personnel, whether the structure of the bottom vehicle is illegal changed.
The under vehicle inspection camera is ideal to view unreachable impossible-to-see total-dark and hard-to-reach or dangerous areas, such as dead space monitoring, border crossings, vehicle entry points, high reach, drop-ceilings, small cavities or pipe openings. It is a great self-contained, lightweight tool for under vehicle detection, hard reach inspection.
Detail
Application Place
This product can be used for airport security, parking inspection, military area inspection, personal private car inspection. We have provided inspection glasses for many important meetings, local police stations, high-level hotels and large factories
Specifications

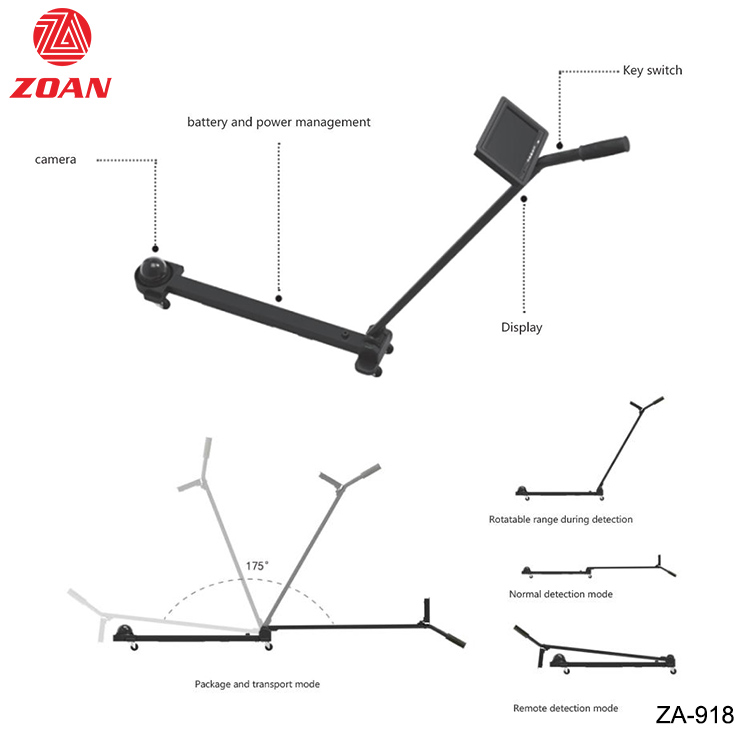

The camera can rotate left, right, rotate and stop automatically.
Angle: The maximum horizontal angle is 355 degrees, The minimum horizontal angle is 22.5 degrees.
Focal distance: 3.6mm
Focal length: Wide-angle
Definition: 600 line and 1/3SONYCCD infrared image sensor, high definition with infrared night vision function .
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
product category
New Products
Handheld portable high sensitivity explosive trace detector ZA800BX Read More
Body Scanner Security Walk through Metal Detector door frame A3000C Read More
Under Vehicle DVR HD Video Inspection Camera System ZA-918 Read More
Mobile Under Vehicle Inspection Surveillance System ZA-UVSS-I Read More
Multi Energy X Ray Baggage Luggage Scanner for Hotel Ktv ZA100100 Read More
Double Source Airport x-Ray Scanner Baggage x Ray Machine ZA100100D Read More
Environmentally friendly and economical, can be reused after unlocking. Small and light design, high detection performance. High detection rate, excellent anti-theft effect. Lower labor operating costs, widely applicable in merchandising shops. Powerful locking mechanism, effectively preventing man-made damage.
Model: ZA8065 Tunnel Size: 800(W)*650(H)mm Conveyor Speed: 0.22m/s Conveyor Max Load: 200kg Dose per Inspection<1.6μGy/h Resolution: 32AWG to 40AWG Spatial resolution: Level: dia1.3mm, Vertical: dia1.0mm Penetrate resolution: 34AWG Penetration: 40mm Steel Film Safety: Guarantee ISO1600 Film
Model: ZA6040 Dimensions: 1845（L）×865mm (W)×1313mm (H) Tunnel size: 615mm (W)×454mm (H) Conveyor speed: 0.20 m/s Conveyor height: 700mm Weight: 354Kg Storage temperature: -40 ℃ ± 3 ℃ ~ +60 ℃ ± 2 ℃ Operating temperature: 0 ℃ ± 3 ℃ ~ + 40 ℃ ± 2 ℃ Power: AC220 V (-10% to + 10%), 50Hz ± 3Hz Power consumption: 0.5kVA
Model: ZA5030A Channel size: 500(L)*300(W) Unit size: 1660(L)*746(W)*1165(H) Unit weight: 284kg Conveyor Max Load: 50kg Penetration: 6mm steel Power Consumption: max. 1KW Generate direct: from bottom to top Operation Power: 220VAC(±10%) 50±3Hz Film Safety: Guarantee ASA/ISO1600 Film
Model: ZA-UVSS-II Size: 1200mm x 350mm Material : stainless steel Water-proof grade: IP68 Load bearing Weight: 50T Image resolution : 12000 *6144 Resolution: 5000* 2048 pixels Image : Black/white (color optional) Power Supply: 24VDC, 3A Signal to Noise Ratio: >48dB
Model: ZA3000 Vertical dimensions: 2230mm (height)×835mm (width)×480mm (depth) Vertical channel size: 1990mm (height)×700mm (width)×400mm (depth) Product weight: 59KG Door packaging size: 2310*650*200mm Main box packing size: 760*390*265mm Packed weight: 67KG Power consumption: 30W Working temperature: -20-60℃ Working humidity: 20~90% Power source: AC 85~240V 50/60Hz Temperature measurement time: less than 0.1s Temperature resolution: 0.02℃ Test accuracy: ±0.2℃ Temperature measurement distance: 0.3-0.5 meters
Model: ZA4030BX Size specifications: L518*W182*H170 mm. Working temperature: +5 ° C ~ +40 ° C. Tube voltage: 30Kv-120Kv continuously adjustable. Tube current: 0.3mA - 1mA continuously adjustable. Power supply: AC 110V or DC 220V (built-in nickel-metal hydride battery) Xenon source power: 0.15 KVA. Motor speed: 3-10 seconds continuously adjustable. Penetration resolution: 32AWG Wireless wifi transmission distance: 30 meters or more
Model: ZA-T08 Size: 66x58x41cm Weight: 43kg Interference mode: all digital DDS interference Interference direction: omnidirectional 8 modules Ambient operating temperature: -40℃ ~ +85℃ Relative humidity: 80± 3% Interference frequency: 20~3000MHZ. Output power: 450W Power supply: AC (220±20) V; DC (28±2)V
For inquiries about our products or pricelist, please leave to us and we will be in touch within 24 hours.
