Full Digital Portable x Ray Baggage Scanner Hand Bag Scanner ZA4030BX

Model: ZA4030BX

Size specifications: L518*W182*H170 mm.

Working temperature: +5 ° C ~ +40 ° C.

Tube voltage: 30Kv-120Kv continuously adjustable.

Tube current: 0.3mA - 1mA continuously adjustable.

Power supply: AC 110V or DC 220V (built-in nickel-metal hydride battery)

Xenon source power: 0.15 KVA.

Motor speed: 3-10 seconds continuously adjustable.

Penetration resolution: 32AWG

Wireless wifi transmission distance: 30 meters or more

  • Product Detail

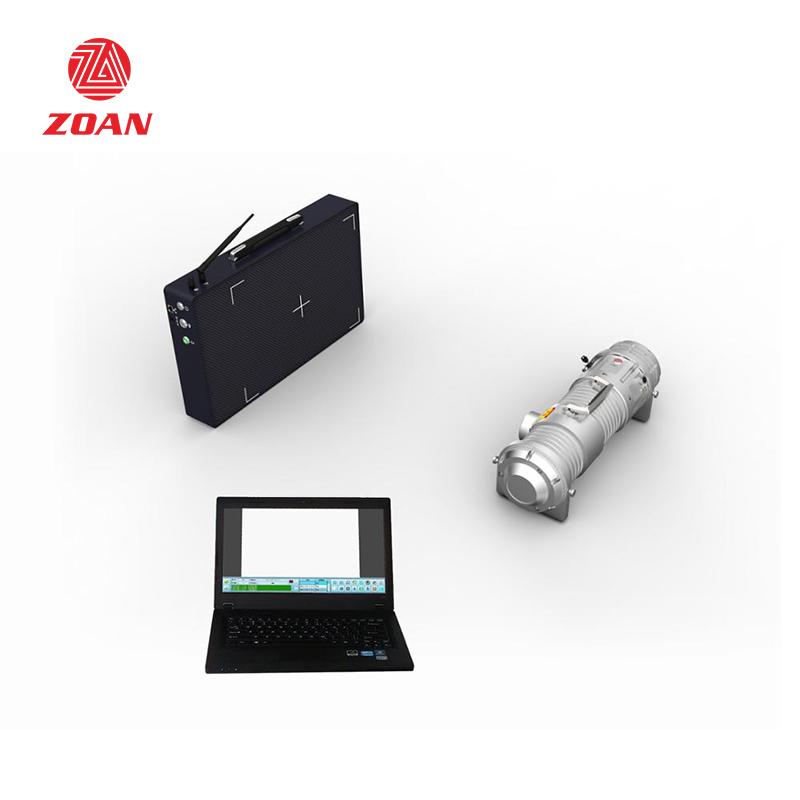

Full Digital Portable x Ray Baggage Scanner Hand Bag Scanner

Portable X-ray scanner has clear image and compact and lightweight design. Using high-resolution digital imaging technology; integrated industrial CCD camera and advanced digital display system.

Applicable to security inspection, criminal investigation, smuggling and factory product quality testing.

Portable x Ray Baggage Scanner



Main features:


X ray source:


  • Tube voltage: 30Kv-120Kv continuously adjustable.
  • Tube current: 0.3mA - 1mA continuously adjustable.
  • Wear: 60mm aluminum plate.
  • Work area stray radiation: 2.1uSv/h.
  • Power supply: AC power supply 110V or DC power supply 220V (built-in nickel-metal hydride battery)
  • Power supply: Ultra-capacity lithium battery, normal use for more than 4 hours.
  • Xenon source power: 0.15 KVA.
  • Working temperature: +5 ° C ~ +40 ° C.
  • Storage temperature: -15 ° C ~ +65 ° C.
  • External 220V AC. Work continuously for 24 hours without interruption.
  • You can connect the adapter during charging and you can also get out of the bundle.
  • Size specifications: L518*W182*H170 mm.

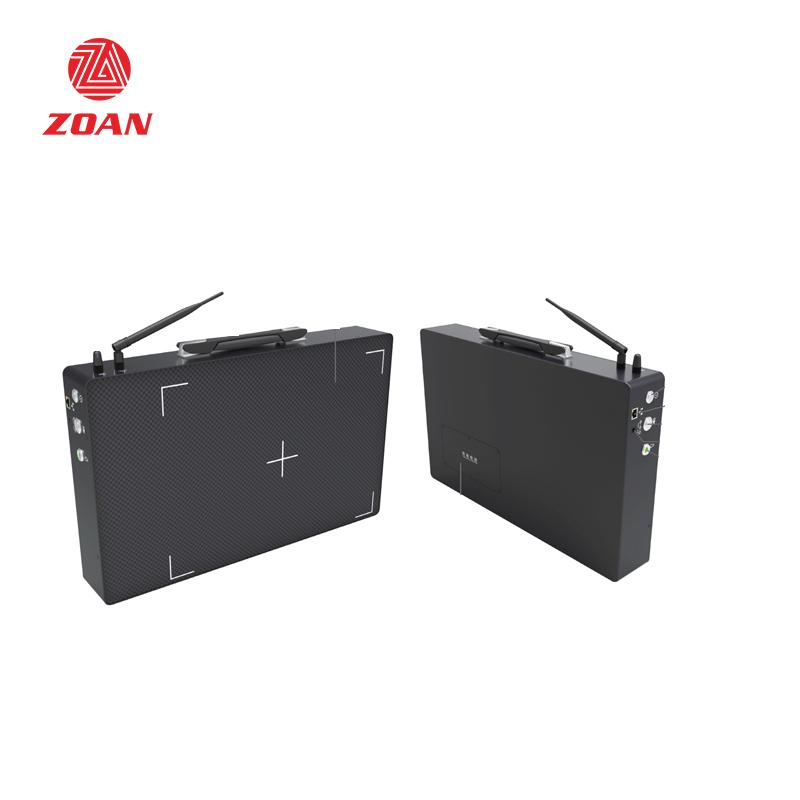

Detection box:
  • Motor speed: 3-10 seconds continuously adjustable.
  • Detector size: 0.8mm
  • Gray level: 16bit (20-bit AD takes 16 bits), currently the highest in the world
  • Body size: 550*340*85 mm
  • Scanning area: 420*300 mm
  • Power: 10W
  • Power supply: large capacity lithium battery, can continuously detect 400 bags
  • System indicators:
  • Penetration: Can penetrate 60mm aluminum plate.
  • Spatial resolution: 40AWG
  • Penetration resolution: 32AWG
  • Dual energy system capable of detecting and distinguishing organic matter and inorganic substances
  • Wireless wifi transmission distance: 30 meters or more
  • Size specification: L553*W85*H276 mm
