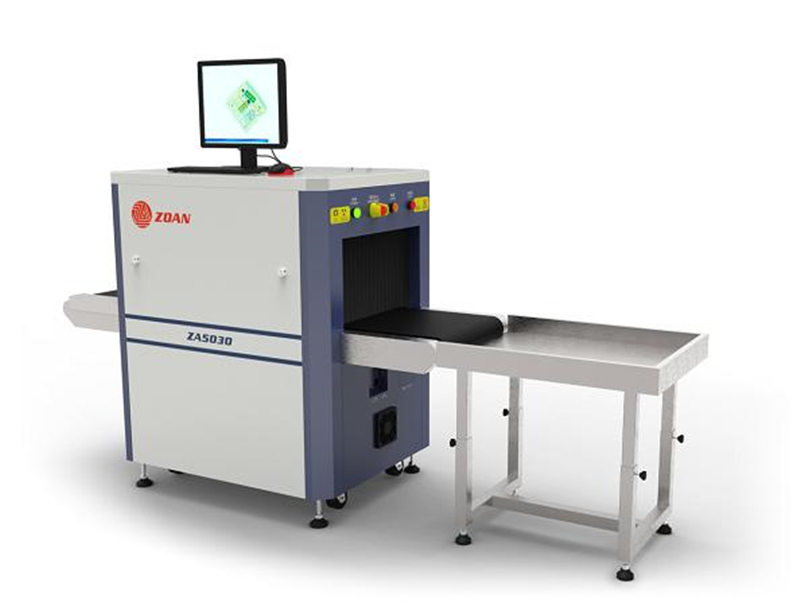

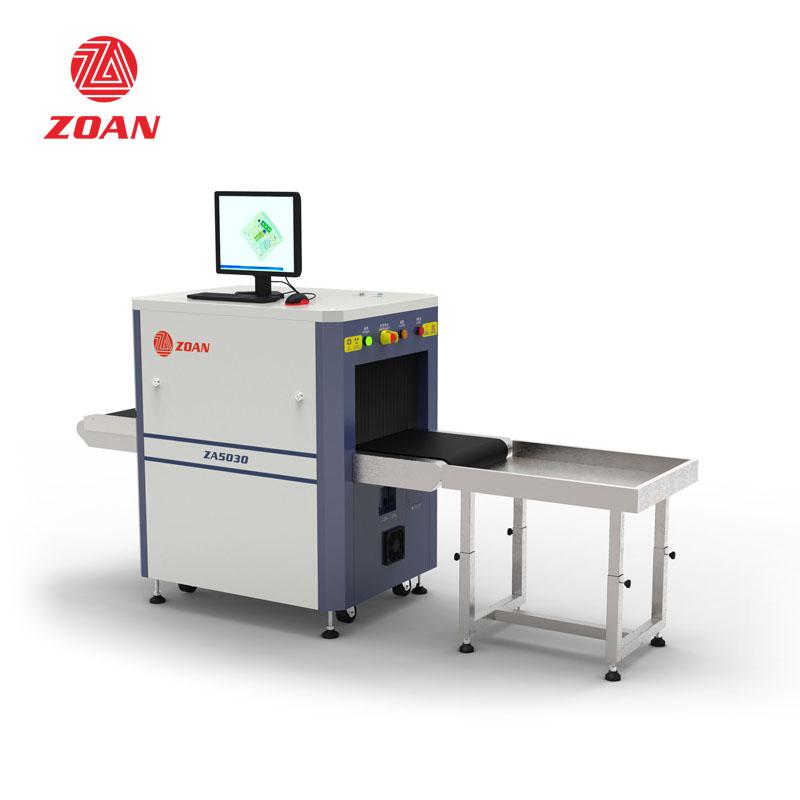

Multi Energy X Ray Baggage Scanner ZA5030

Physical Specifications

Unit weight (kgs)

303

Unit size (mm)

1660(L)*746(W)*1165(H)

after packed in wooden pallet -

Gross weight (kgs)

400

Packing size

180*88*138cm

General Specifications

Tunnel size(mm)

500(L)*300(W)

Conveyor Speed(m/s)

0.22

Conveyor height(mm)

663

Conveyor Max Load(kgs)

150

X ray dose per each inspection

1.5 μGy

X ray leakage

<0.25 μGy / h

Penetration

32mm steel

Wire Resolution

dia 0.0787mm copper wire (AWG40)

Penetration Resolution

dia 0.202mm copper wire (AWG32) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm

Spatial resolution:

Horizontal:dia1.0mm,Vertical: dia1.0mm

Power Consumption

max. 1KW

Noise

56.3 dB

Film Safety

Guarantee ASA/ISO1600 Film

X-ray Generator (single)

Anode Voltage

140 KV

Anode power

0.4-1.2mA (adjustable)

Generate angle

80 degree upward

Generate direct

from bottom to top

Cooling / Duty Cycle

Oil Cooling /100%

Image System

X-ray Sensor

L-Shaped Photodiode Array (multi-energetic)  , 12bit Deep

Image Display

High resolution of 1024 * 1280 pixel; Image Grey Level: 4096

Image Enhancement

1-64times enlargement continuity, Color/BW, negative, high/low
penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.

Image Recall

All preceding images recallable, retrieval

Explosives & Narcotics Detection

Explosives & narcotics alarm and highlight according to atomic number signature

High Density Region Alarm

Impenetrable region alarm and highlight, for possible concealing of threats and contrabands

Threat Image Projection

Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability

Image Archive

Up to 100,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats

Miscellaneous Functions

Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities,system log, system standby and stimulant training, ADS etc.

Network Applications

Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) .

Images process

24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags

Operating Environment

Operation temperature/Humidity

 0℃-45℃ / 5%-95%(non-condensing)

Storage Temperature/Humidity

 -40℃to 70℃ / 5%-95%(non-condensing)

Operation Power

 220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)

UPS

 15mins, 30mins, 60mins etc, optional

Computer and other

Monitor

High Resolution Color, LCD Accord, 17inch

Hard Disk

SEAGATE 500G 3.5”

CPU

G1610 2.6G

Storage

2GB 1600MHz DDR3 Innodisk

Main board

H61 SYM76993VGGA

Compliance

International

* ISO19001 ; ISO14001 ; OHSMS18001 ;
* CE
* Maximum X-ray leakage of less than 5 μSv/h(0.5mR/h) measured at 5cm from any external surface. (European standard - less than 1 μSv/h(0.1mR/h) measured at 10cm from any external surface)

National (China)

* Health Inspection Report
* Computer Software Copyright Registration Certificate
* Software Product Registration Certificate
* Radiation Safety Certificate from Ministry of Public Security
* Quality Certification from Safety and Police Electronic Products Quality Inspection Center
* Design pantent certification: Patent No. : 201020700245.2 ; Patent No. : 201020700245.8 ; Patent No. : 201020700256.0
