English
Model: ZA4030
Tube electric pressure: 30 Kv -120Kv
Tube current: 0.3mA—1mA（Adjustable）
Penetration force: 25mm steel plate and 60mm Aluminum plate
Hard disk: 1T
Display resolution: 1920×1080（15inch）
Operating system: WIN10
Imaging size: 430mm×350mm
Drawing time: 1S-3S
spatial resolution: 3.6LP/mm

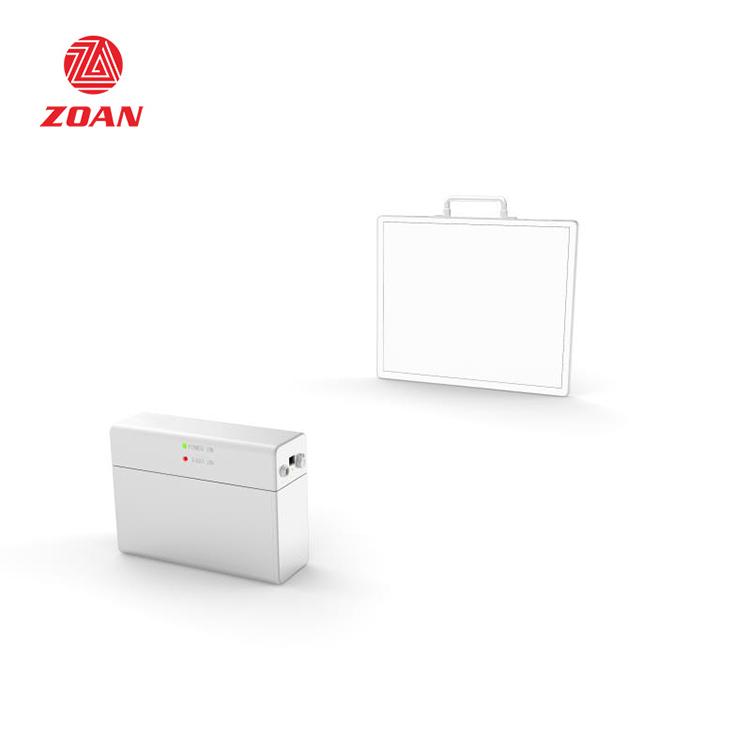

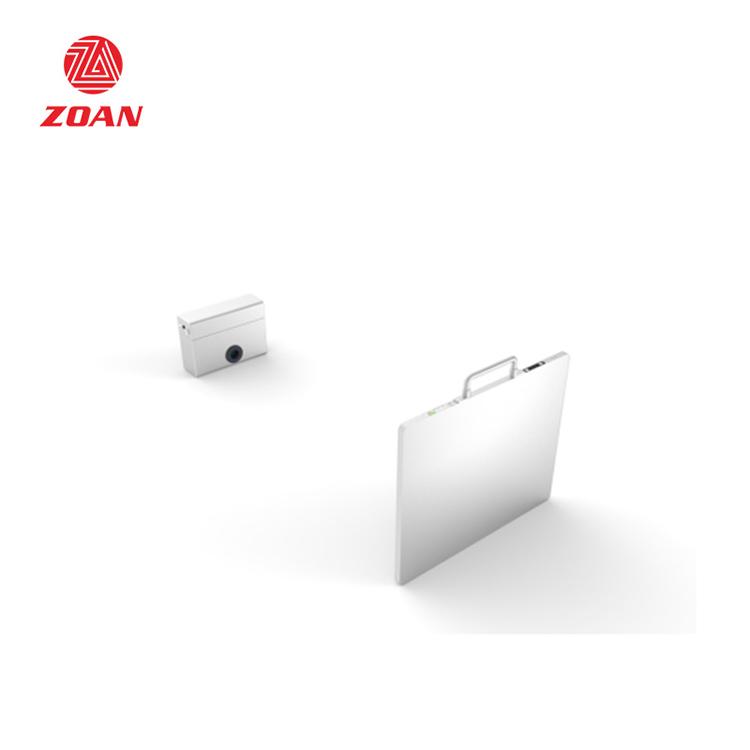

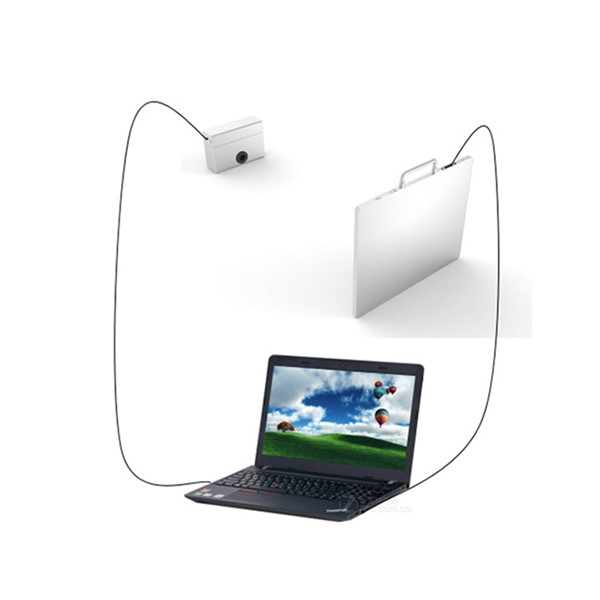

Portable X ray Baggage Scanner
This device is a light weight,portable,battery powered x-ray scanning system designed in co-operation with the first responder and EOD teams to meet the need of the field operative. It is light weight and comes with user friendly software that helps operators in understanding the functions and operations in a less time.
Main features:
（1）The X ray detector box is super thin and portable with less than 15mm thickness.
（2）The imaging area is very large, up to 43 cm * 35 cm. It can be detected by X-ray fluoroscopy only once.
（3）The detection efficiency is super, which can greatly reduce the radiation dose.
（4）The X-ray detection box can be adjusted according to the shape and position of the object to be detected. It can be used for forward, lateral, inverted, upright and downward position.
（5）Equipped with high power and high performance lithium ion battery, it can detect more than 600 suspected bags at one time.
（6）Powerful image processing software can acquire X-ray perspective images in real time and provide powerful professional digital image processing functions.
（7）AC and DC power supply. After 220V power supply, it can be used continuously for 24 hours.
(8)This equipment can work normally in harsh environments such as strong light.
Product Specification：
|
Portable X ray source parameters： |
||
|
Tube electric pressure |
30 Kv -120Kv |
|
|
Tube current |
0.3mA—1mA（Adjustable） |
|
|
Penetration force |
25mm steel plate 60mm Aluminum plate |
|
|
size |
245mm x 80mm x 184mm |
|
|
weight |
5.9KG |
|
|
Imaging panel parameters： |
||
|
Pixel spacing |
140 μm |
|
|
spatial resolution |
3.6LP/mm |
|
|
Drawing time |
1S-3S |
|
|
Imaging size |
430mm×350mm |
|
|
work environment |
5-40 ºC,10-75% RH |
|
|
Appearance size |
380×460×15 mm |
|
|
weight |
3.7KG |
|
|
power |
20W |
|
|
Laptop parameters： |
||
|
Display resolution |
1920×1080（15寸） |
|
|
operating system |
WIN10 |
|
|
CPU |
Intri i5 |
|
|
Video card |
2G独立显卡 (Discrete graphics) |
|
|
Hard disk |
1T |
|
|

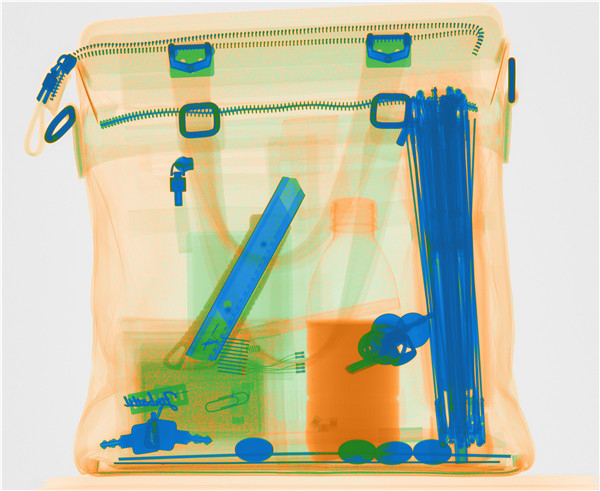

Test results： |
||
|
|
||
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
