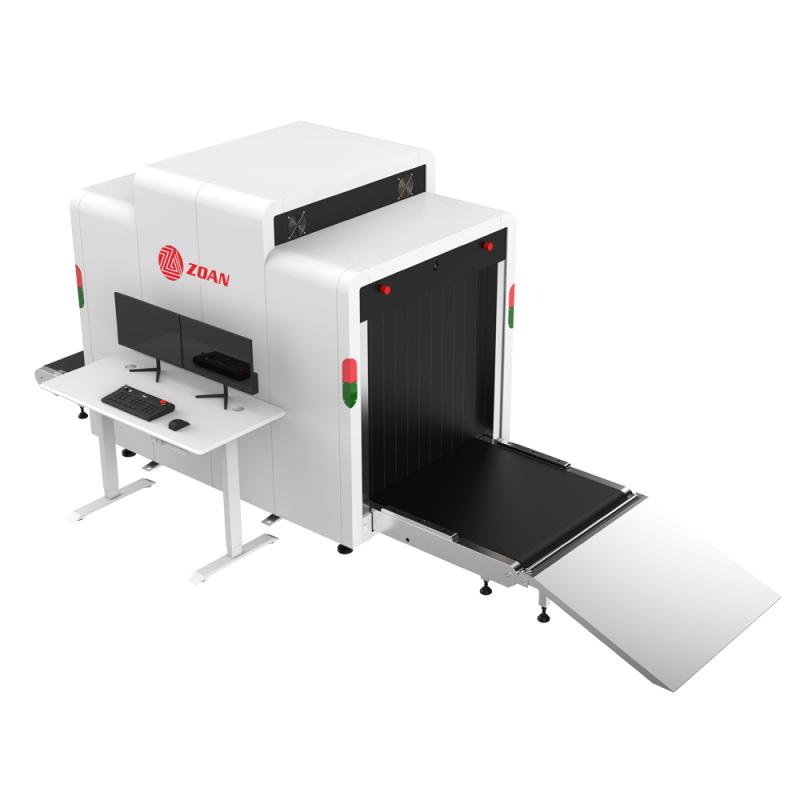

AI Intelligent Security Inspection Machine

ZA100100 cargo inspection x-ray machine with AI Smart Recognition

Tunnel size: 1000 mm × 1000mm

X-ray Generator: Single-View

X-ray Tube Anode Voltage: 160 kV

X-ray Tube Cooling:Sealed oil bath with forced air

Wire Resolution :38 AWG (0.1 mm)

Penetration(steel) :Typical: 36 mm

Leakage Dose-rate: ≤ 0.9 μSv/h (μGy/h)

Noise Level: ≤ 65 dB

Conveyor Speed: 0.2 m/s

Conveyor Hight : approx. 300 mm

Maximum Belt Load: 250 kg (440.92 lb)

Current Leakage :≤ 0.25 mA

Film Safety :ISO 1600 (33 DIN)

Product Detail

ZA100100 cargo inspection x-ray machine with AI Smart Recognition

Functions:

X-ray Package Image Rendering

Adopts the Secudetequip algorithm to generator images of packages and their content, displaying their shape and the materials that they are made of.The generatored images reflect X-ray absorption degrees and material composition. Tobetter identify dangerous items, scanned objects will be categorized into organic matter,mixture and inorganic matter,and marked in orange, green and blue respectively according to their composition.

X-ray Package Image Enhancement

Adopts the Secudetequip algorithm and enhances package images with different effects so that operators can better analyze the items.Enhancement functions include color/black and white, local enhancement, super enhancement, edge enhancement, image scanning, organic stripping, metal stripping, mixture stripping, Inverse,high-energy enhancement, low-energy enhancement, light, dark,density threat alert Z7/Z8/Z9, high density alert, AI overlay, vertical flip,pseudo color and more.

· Uses X-ray to generator images of packaged items passing on the conveyor belt, and checks the shape and size of packaged items.

· Displays images of the packages with enhanced effects, such as high energy enhancement, super enhancement, high density alert and image scanning.

· Supports security screening mode and video surveillance mode.

· Recognizes dangerous itemssuch as knives, bottled liquid, spray cans,guns and lighters from scanned images.

· Set danger levels for suspect items and link alarms such as voice prompt, sound and light alarm and conveyor beltstopping.

· Displays AI overlay on suspected objects. The AI overlay box moves with the package.

· All detection results can be stored and generated as reports, which can be searched and exported according to danger level and time.

· 2 built-in cameras that respectively monitor the entry and exit of baggage and the package inspection process.

· Add IP camera and PoE camera for live video, storage and playback.The cameras monitors the entire security inspection.

· Alarms are triggered by system errors such as no HDD, storage error,IP conflict and MAC conflict.

· Supports HDD storage space management and advanced manage ment such as RAID configuration (RAID0/1/5); ensures data security.

· Supports user group management and multiple authorities setting;supports custom function, permission and passwordconfiguration.

· Supports system operation and maintenance management, suchas self diagnosis, log and online user search, and device updating.

Single-screen Display Video Output

Displays images in security mode (package images) or video surveillance mode.

Dangerous Items Recognition

Adopts the Secudetequip algorithm to analyze X-ray images of packages and identify dangerous items such as knives, bottled liquid, pressure tanks,guns and lighters. It also tracks dangerous items by using AI overlay which can be marked in different colors to indicate danger levels. Alarm linkage are supported such as voice prompt, sound and light alarm and conveyor belt stopping.

Person-package Linkage

Included are the entrance camera and exit camera. The system supports real-time recording, and offers person-package linkage storage and search.

Package Statistics

All detection results can be stored and generated as reports, which can be searched and exported according to danger level and time.

Continuous Scanning

Continuously scans packages and displays their images even when the system restarts after being stopped.

Safety Protection

X-ray protection is higher than the international standard. The leakage dose-rate is less than 0.9 μGy/h.

Scene

The machine is used forsecurity screening of handbag, briefcase, postal,parcels, express parcels and other small packages. It is applicable for use in government buildings, courts, procuratorates, public security and more.
